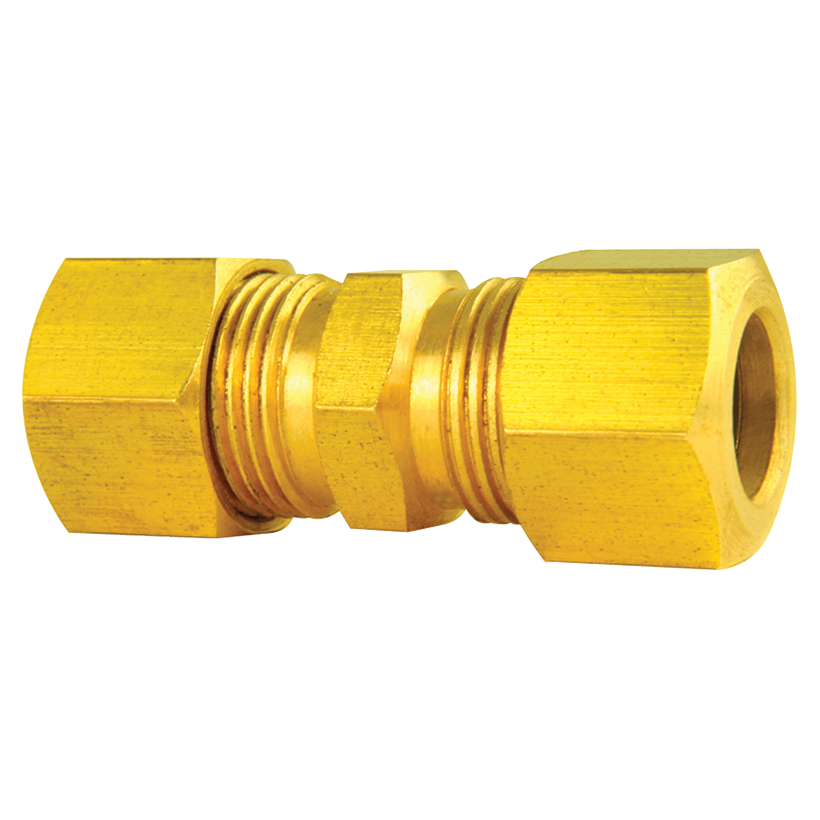

1/2" Brass Compression Union

Description

Compression unions are used in low pressure application such as: air, oil, and water. They are generally used to connect lengths of copper, brass, and aluminum tubing. To make connection, place the nut and then the sleeve over the tubing and then insert tube into the fitting body. When tight, the wedging action of sleeve between body and nut create a leak free connection. Use for joining 1/2" copper, brass, or aluminum tubing in low-pressure applications (NOT brake lines).

Specifications

Compression Sleeve Inside Diameter: 1/2 in
End 1 Type: Ring
End 2 Type: Ring
Finish: Brass
Material: Brass
SAE Approved: Yes
Thread Type #1: SAE

Interchanges

FMSI Universal: 3776
